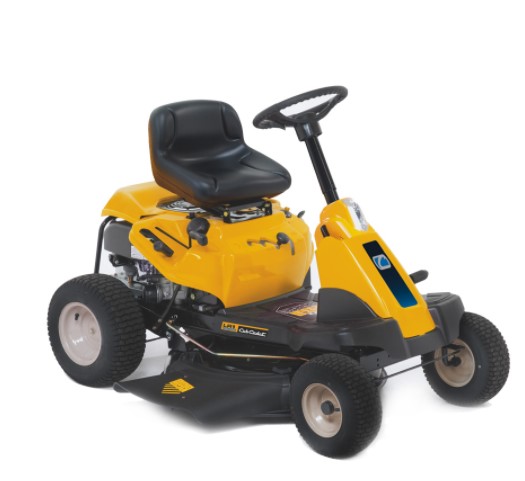

Cub Cadet LR1MS76


The Cub Cadet LR1 MS76 ride-on lawn mower is packed with fabulous features like the space-saving design, agility and outstanding performance. The compact and nimble mini rider hardly needs more garage space than a walk-behind mower and always delivers impressive results. Equipped with a 76cm (30″) cutter deck, it is suitable for lawn areas of around 1200 square metres. The cutting height can be adjusted through five positions from 38 to 95mm.

At the heart of the Cub Cadet LR1 MS76 Force Series mower is a 420cc Cub Cadet engine. The powerful and reliable single cylinder engine has enough reserves to master any situation. The overhead valve technology, cast iron cylinder, ball bearings on the crankshaft, electronic ignition and many other state-of-the-art features give the engine long life. For even more piece of mind, the mower is backed by a three year conditional manufacturer’s warranty.

The transmatic transmission makes it possible to change gear without stopping. All that is necessary for selecting the drive direction and speed is to adjust a lever and you’re ready to go! You have the option to select between six forward and six reverse speeds. The tight 46cm turning radius means the machine is easily manoeuvrable around obstacles in the lawn such as shrubs, trees and flowerbeds.

With the Cub Cadet LR1 MS76 ride-on mower you can choose between mulching and discharging the grass clippings. An optional grass collector is available as an accessory (see related items below). The medium back seat and soft grip telescopic steering column are both adjustable for the optimum operator comfort.

Brand Cub Cadet
Engine Cub Cadet
Displacement 420cc
Rated Power Output 8.2kW / 3000rpm
Engine Cylinders Single
Battery 12V heavy-duty 275 cold crank amp
Battery Charger Optional accessory: 196-967-678
Start Method Electric
Transmission Type Transmatic
Transmission Shift-on-the-go, foot pedal control
Fuel Tank Capacity 4.9L
Lubrication Fully pressurised with automotive-style oil pump spin-on oil filter
Speeds 6 (f/r)
Cruise Control No
Productivity 1500m²h
Cutting System 3-in-1 option
Width of Cut 76cm / 30″
Cutter Deck Stamped
Blades 1
Blade Engagement Manual lever control
Minimum Cutting Height 38mm
Maximum Cutting Height 95mm
Cutting Height Adjustment 5 positions
Grass Collector Optional 115 litre accessory: 19A30014OEM (will require additional high lift bagging blade 742-05166)
Mulch Plug Optional
Turning Circle 46cm / 18″
Mow In Reverse No
Anti-Scalp Deck Wheels No
Deck Wash Nozzle Standard
Seat Medium back, screw adjustment
Front Axle Steel
Front Bumper No
Headlights No
Wheels Sleeve bearings
Wheels – Front 13″ x 5″
Wheels – Rear 16″ x 6.5″
Tow Bar Optional hitch kit: 196-398-000
Safety Features Neutral start, operator presence, brake pedal lock
Assembled Dimensions 157cm L x 85cm W x 112cm H
Weight 127.0kg
Sound and Noise Data LpA: 88dB, LwA: 98dB, LwAg: 100dB
