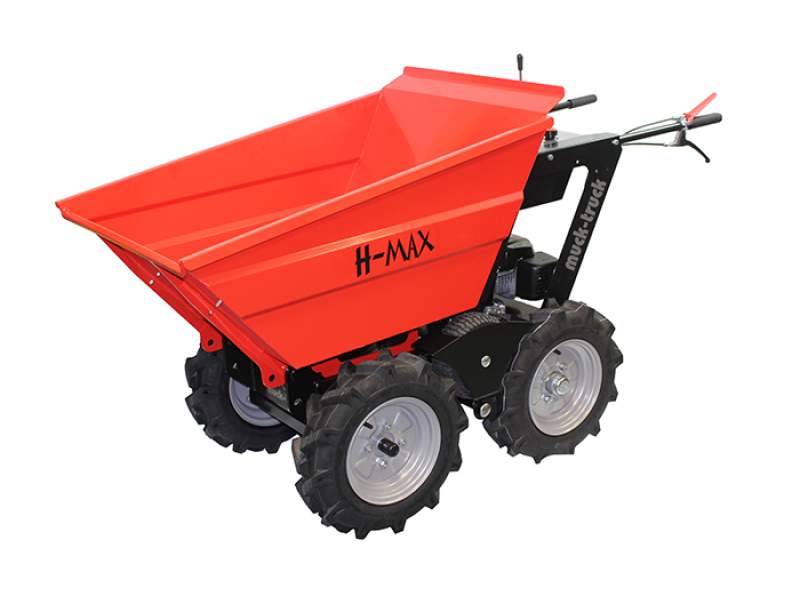

Muck Truck Red (H-Max)


The H-Max™, delivers 25% more capacity and the addition of engine powered hydraulic tipping over the standard Max-Truck™.

It can carry 450kgs/1000lbs/10cu ft and will climb a 30º slope fully loaded.

The machine is fitted with the Honda GXV Commercial grade 5.5hp engine and the transmission drive axle has 3 forward and 1 reverse gears – the same engine and transmission as Muck-Truck® and Max-Truck™ as they has been tried and tested for over 30 years.

  • Model:H-Max™
  • Engine:Honda GXV 160 Commercial 5.5hp
  • Transmission:3 forward / 1 reverse
  • Speed:0-3.5mph
  • Fuel:Unleaded Petrol
  • Capacity:10 cu/ft – 1,000lbs/450kgs carrying capacity
  • Noise Rating:Up to 79db
  • Parking Brake:Disc
  • Wheels:4 x 400×10, 4 ply tractive
  • Dimensions:(L) 72” x (W) 29” x (H) 42”
    (L) 1830mm x (L) 735mm x (H) 1070mm
  • Weight:Unladen weight – 410lbs/185kgs
  • Traction:4 Wheel drive
